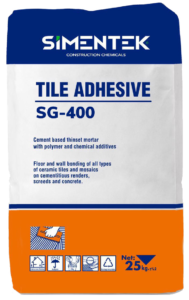

Tile Adhesive SG-400 (Gray)
Description
Cementitious ceramic tile adhesive with extended open time and reduced slip.
Fields of Application
— Floor and wall bonding of all types of ceramic tiles, mosaic and decorative bricks on cementitious renders, cementitious screeds and concrete.
— The substrates must be notched or primed with SIMENTEK BETONEX before bonding of tiles on existing ceramic tiles.
Properties
— High adhesion strength.
— Allows installation of tiles from top towards the bottom.
— Extended open time.
— Easily trowellable.
Application
— Substrates must be sound, free from oil, grease, and sufficiently dry. Cementitious substrates must be cured.
— Use SIMENTEK SGP500 in case of uneven substrates to get a sound and flat surface.
— Wipe the back side of tiles with water if dusty.
— Pour 25 kg of SG-400 into 6.5-8 liters of clean water slowly and mix to obtain a homogeneous paste free from lumps.
A low speed mixer is recommended to mix. Do not add any additive which is not mentioned in the instructions for the application
— Allow to stand for 5-10 minutes to mature. After 1-2 minutes remixing, the paste is ready for application.
— Spread the mortar onto the substrate with notched trowel of which notch size is appropriate to the tile dimension. To obtain a good adhesion first apply a thin coat of SG-400 with the flat side of trowel, then notch with the toothed side of trowel.
— Open time is 30 minutes. Install the tiles within this period with pressure. Unfavorable climatic conditions (high temperature, low humidity, wind, etc) can reduce this time to just a few minutes. If this period exceeds, scratch and discard the mortar.
— Dispose mortars of which pot life is expired. Clean tools and hands with water, surfaces with a damp cloth.
— Tiles installed with SG-400 must not be subject to water for at least 24 hours.
Warnings
— Since contains cement, irritating to eyes, respiratory system and skin.
— Indicated consumption is a general information. It may change depending on the application conditions and surface properties.
Storage
— Store in dry medium. Do not stack more than 10 bags on top of each other.
Packaging
— 25 kg multi-ply paper bags.
Technical Properties (at 23°C and 50% RH)
| General Data | |
| Appearance | Grey powder |
| Shelf Life | 12 months when stored in the original sealed packing in dry place. |
| Application Data | |
| Application Temperature Range | (+5°C)-(+35°C) |
| Mixing Ratio | 6.5-8 lt water / 25 kg powder |
| Pot Life | Approx. 6 hours |
| Slip (EN 1308) | ≤0.5 mm |
| Open Time (EN 1346) | After 30 minutes ≥ 0.5 N/mm² |
| Grouting | 8 hours on wall; 24 hours after on floor |
| Consumption | 3-5 kg/m² |
| Performance Data | |
| Tensile Adhesion Strength (EN 1348) | |
| – initial | ≥ 0.5 N/mm² |
| – after heat exposure | ≥ 0.5 N/mm² |
| – after immersion in water | ≥ 0.5 N/mm² |
| – after freeze/thaw cycles | ≥ 0.5 N/mm² |
| Service Temperature Range (after final cure) | (-40°C)-(+80°C) |
| Dangerous Substances (EN 12004) | Complies |
| Reaction to Fire | A1 |
